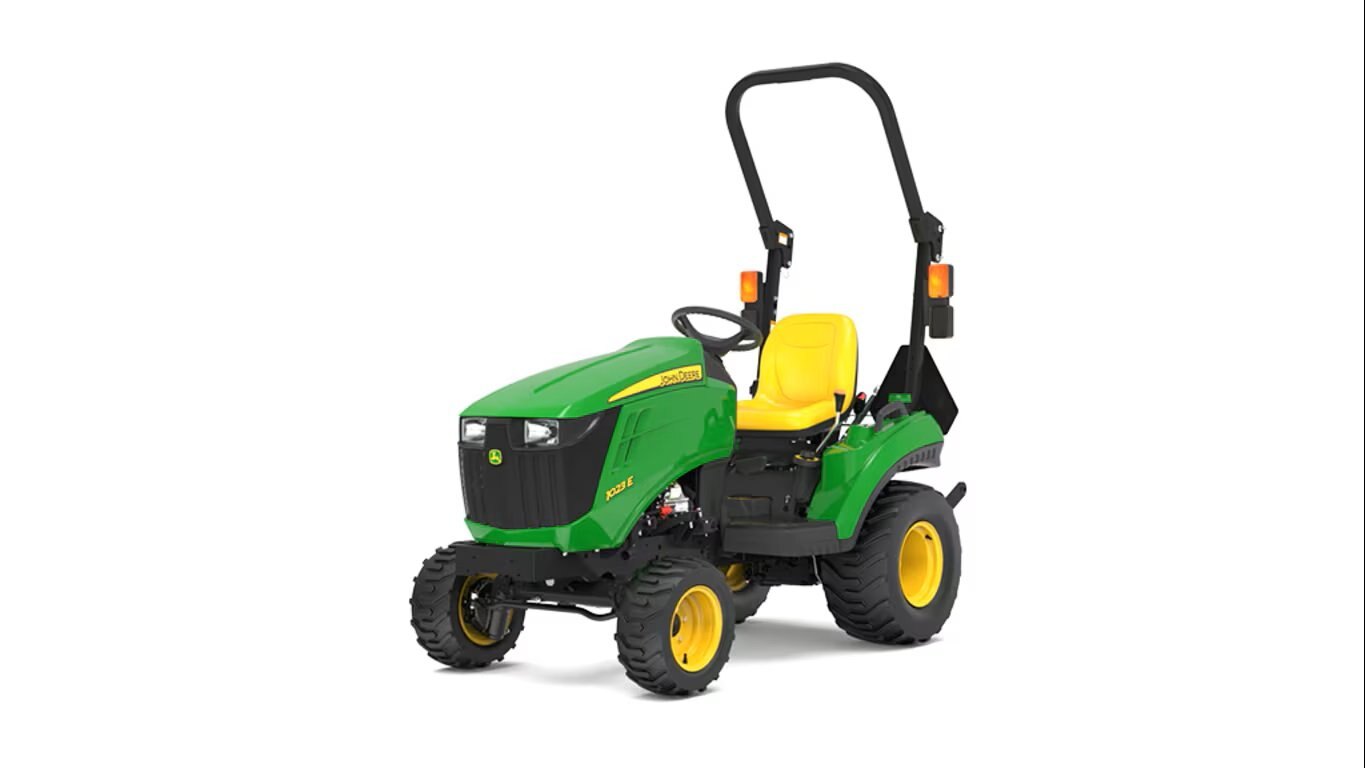

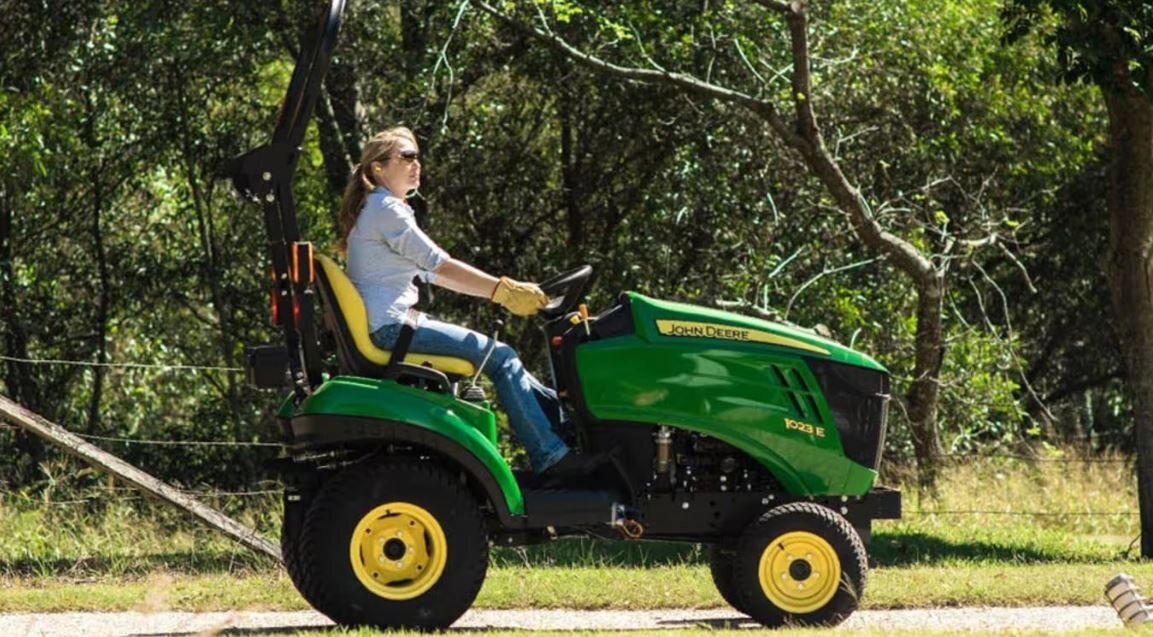

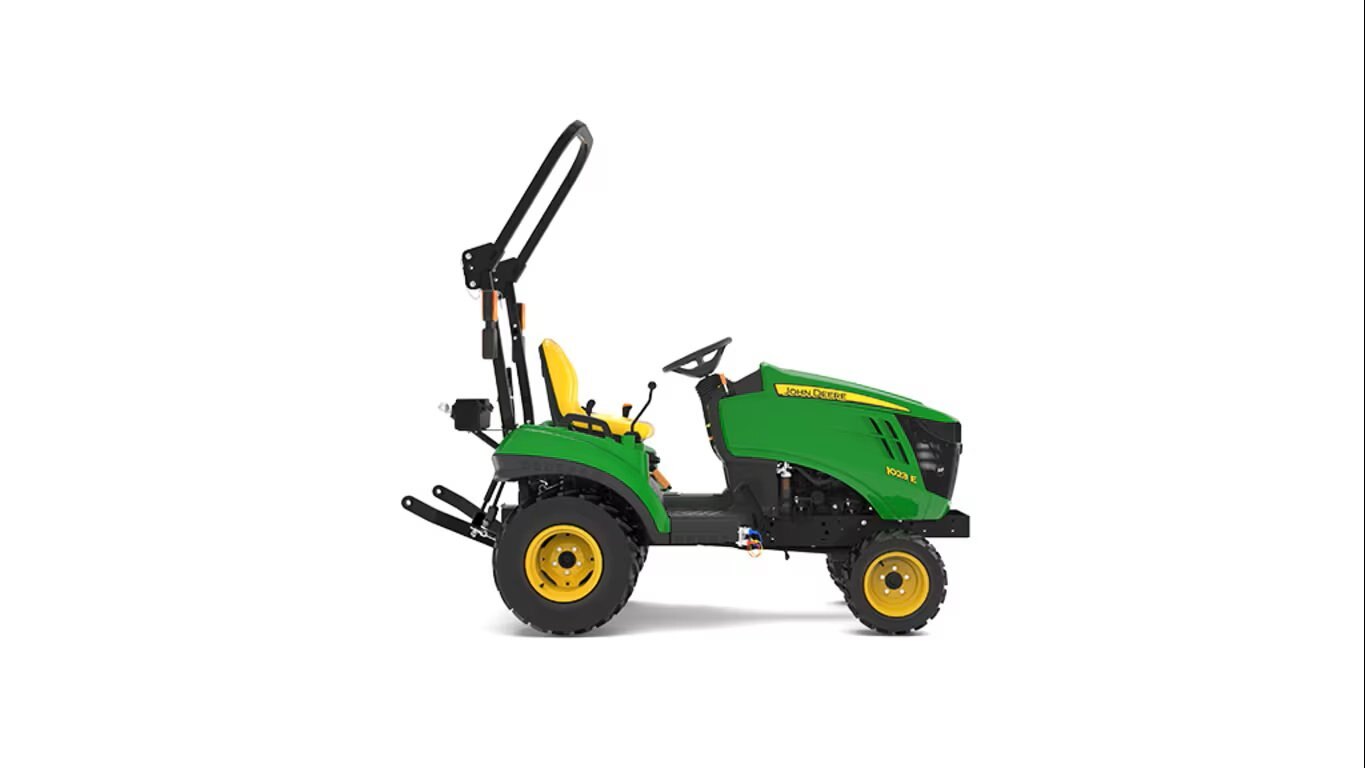

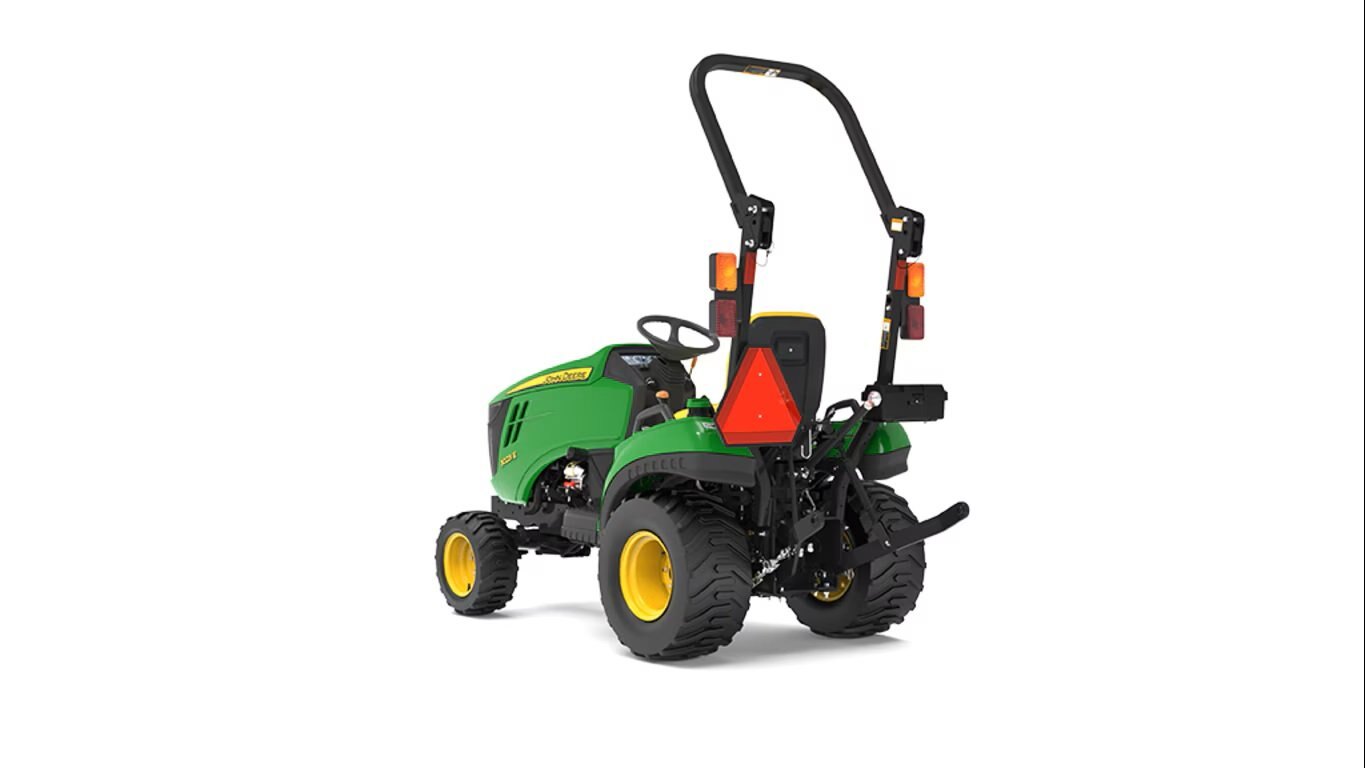

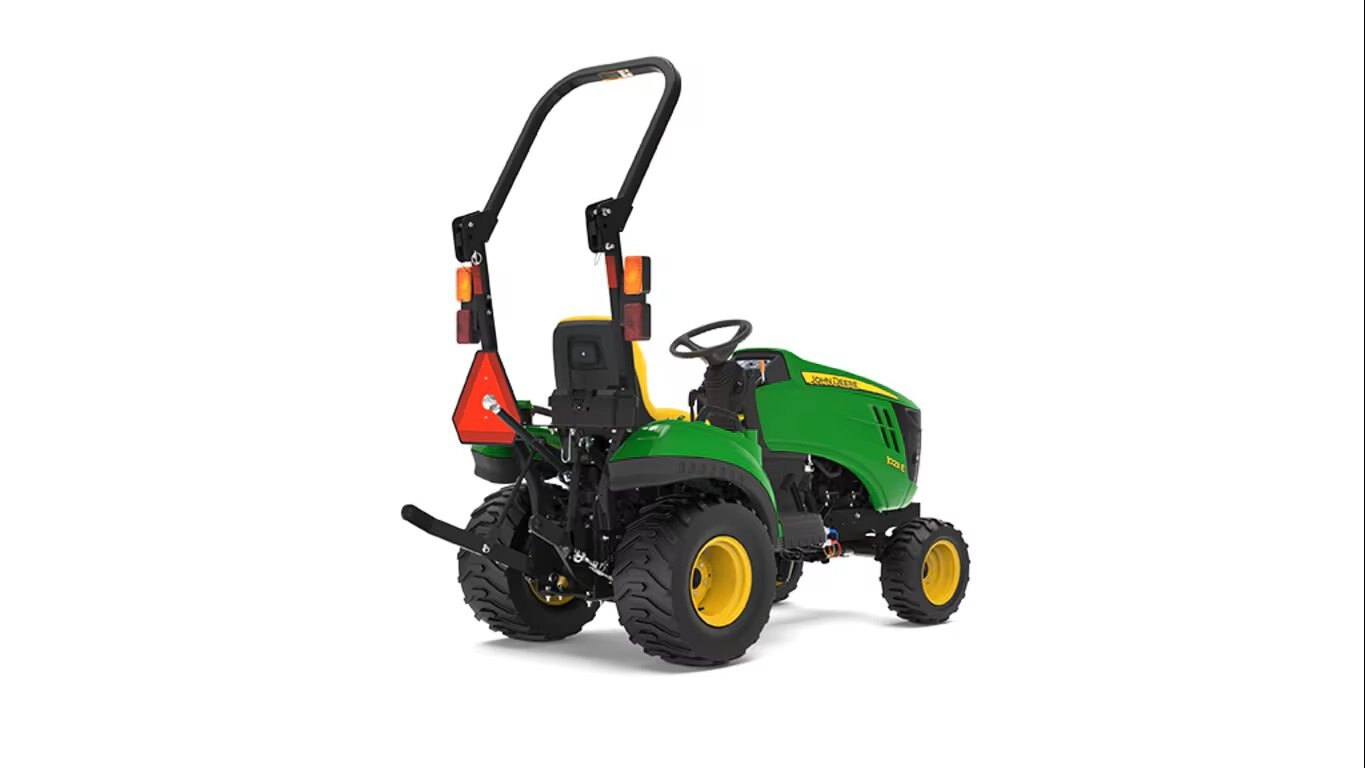

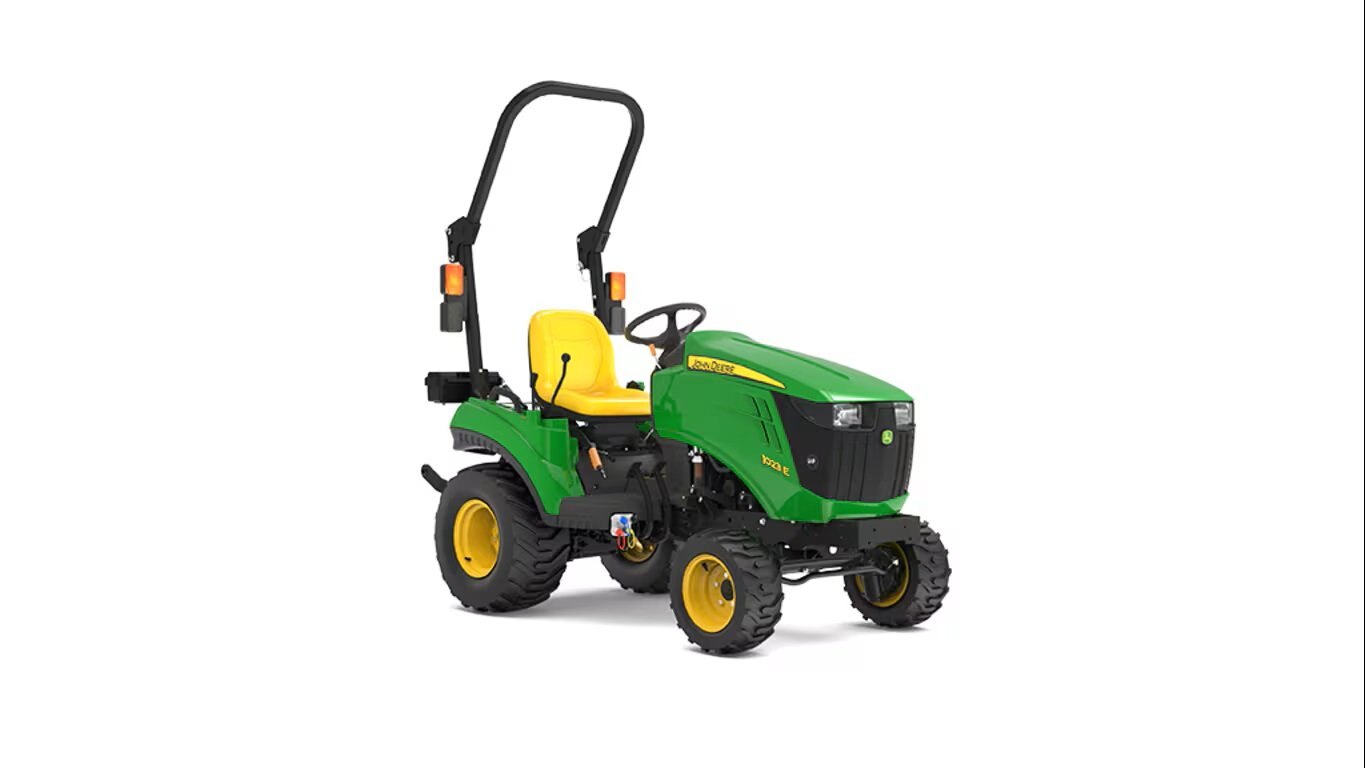

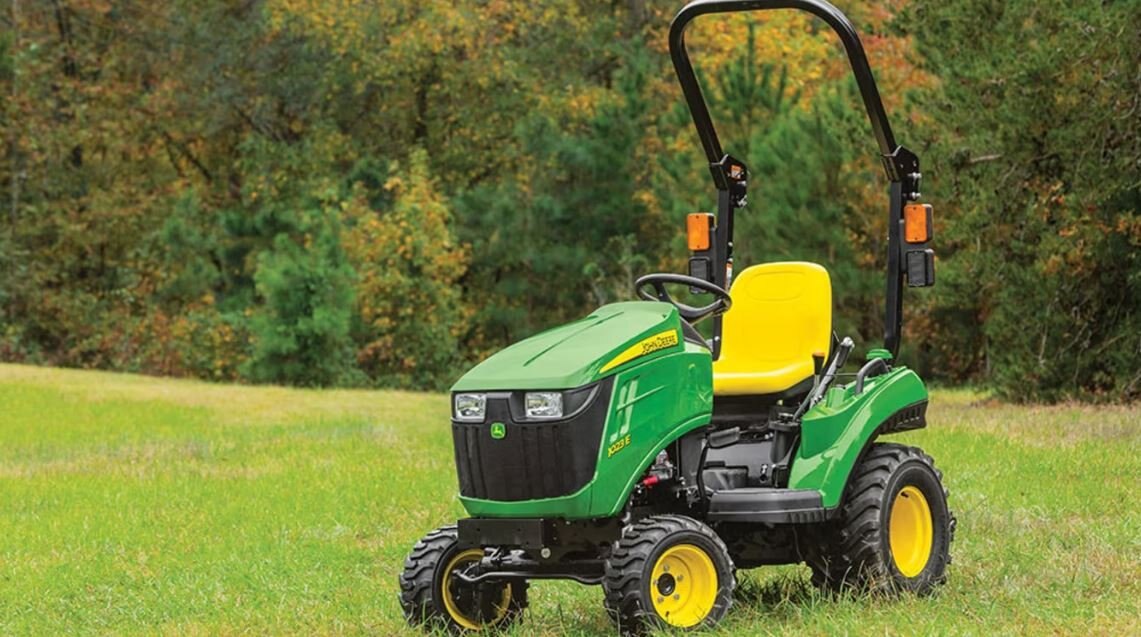

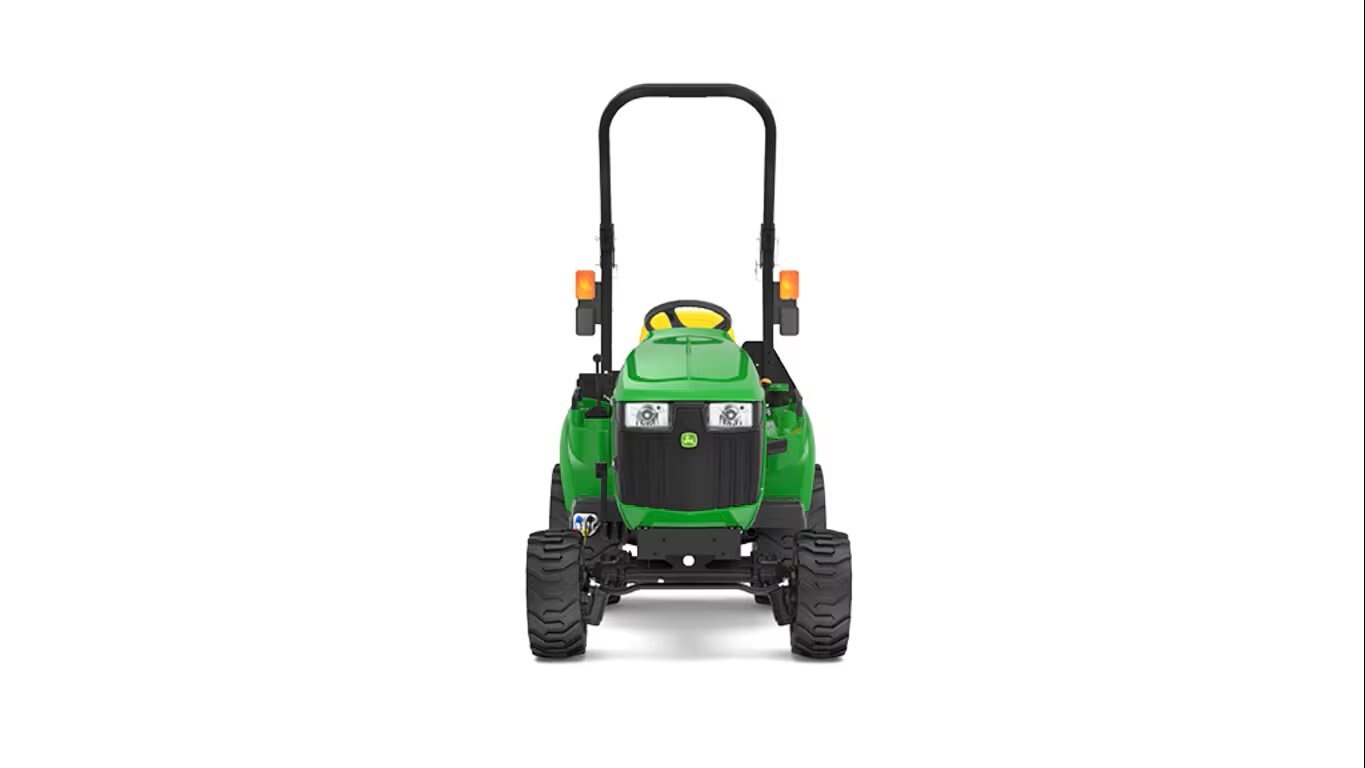

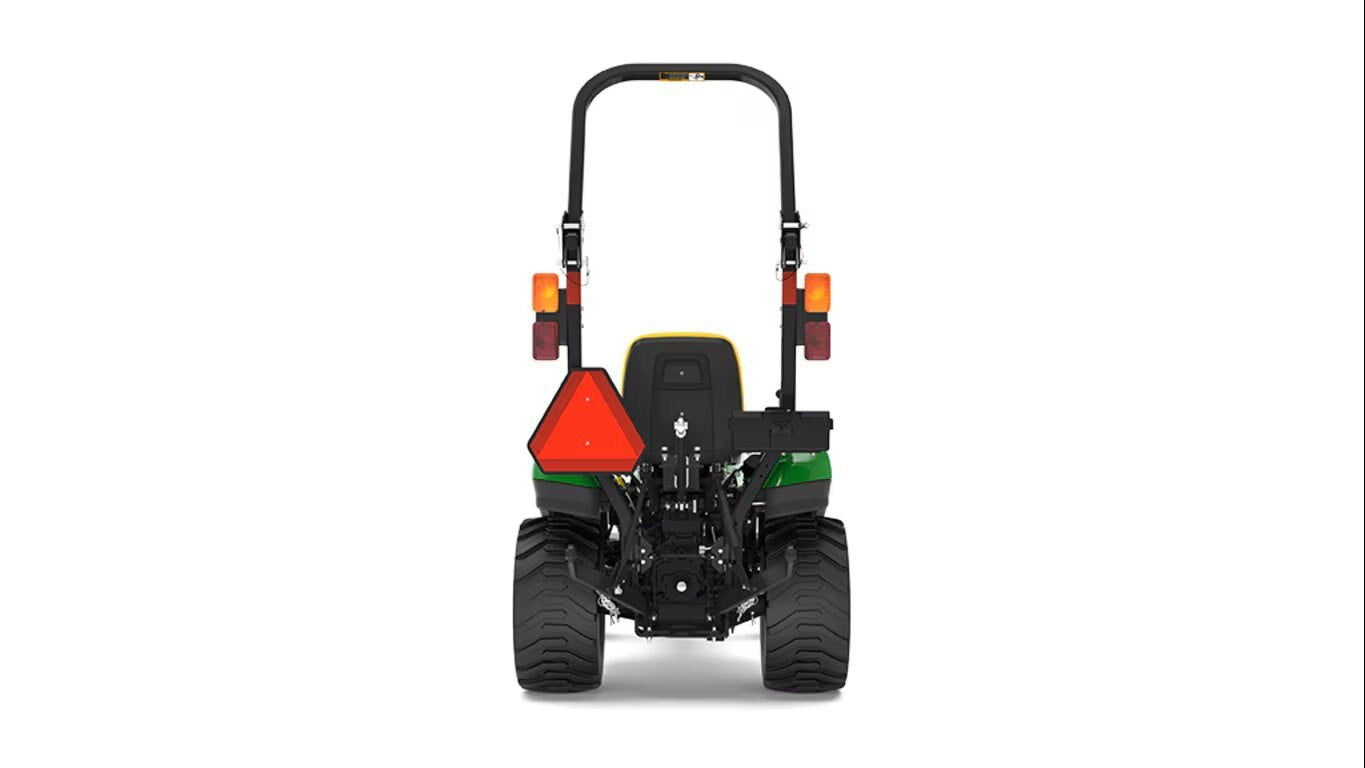

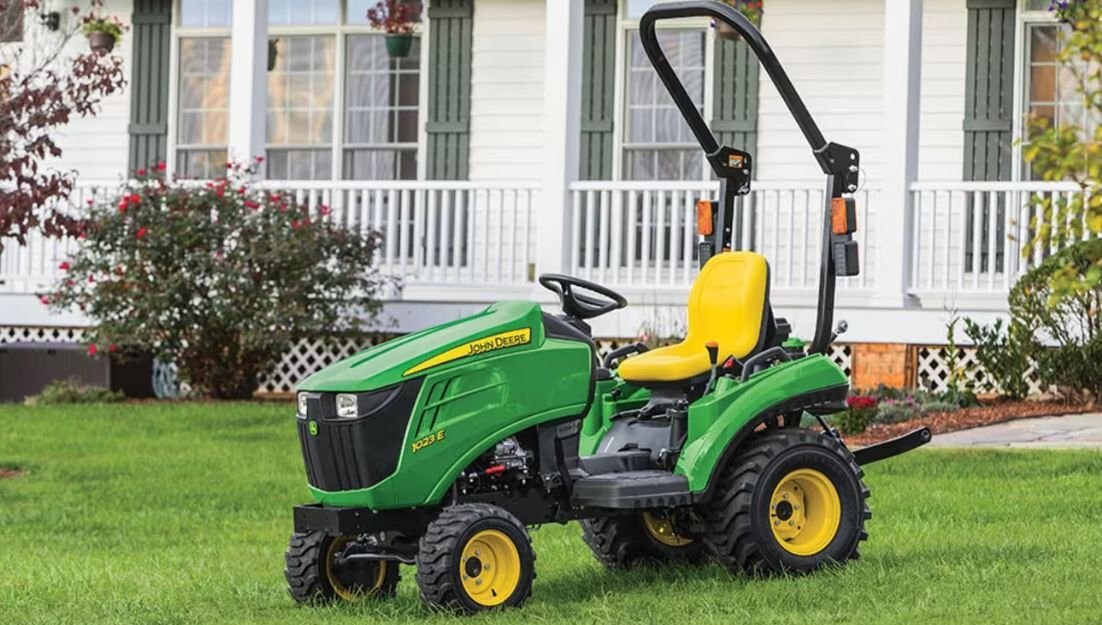

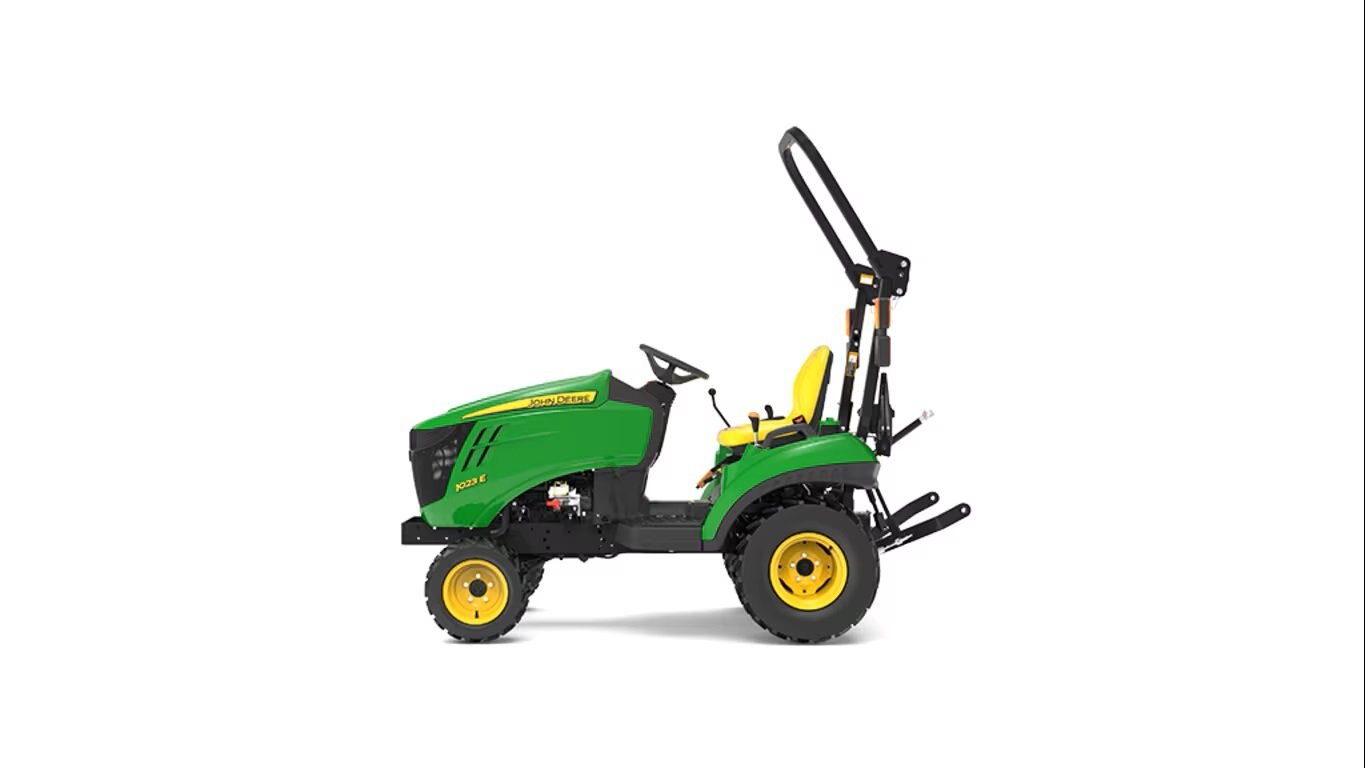

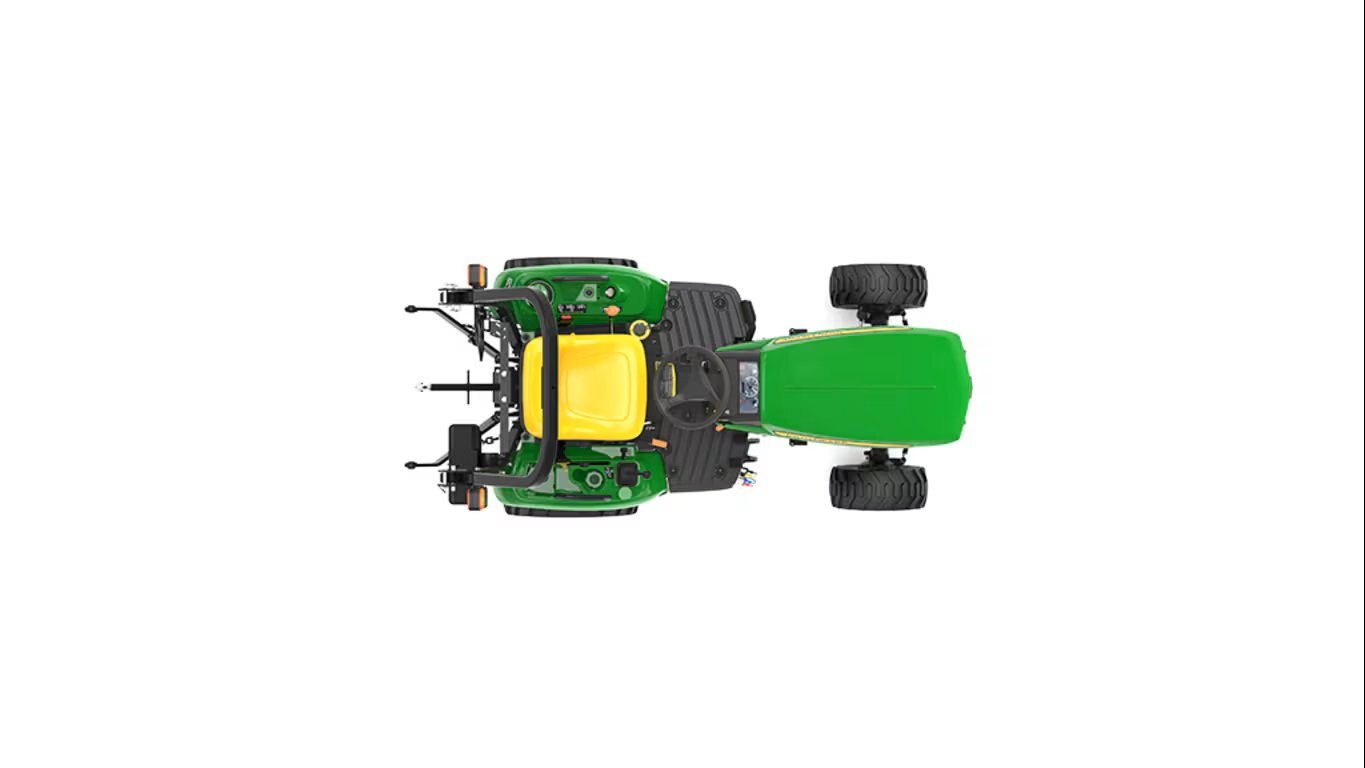

Sub-Compact Tractor
- Powerful Final Tier 4-compliant diesel engine
- New, easy-lift hood with dual gas-charged lift struts
- AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
- Easy-to-operate two speed hydrostatic transmission
| Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | 12.1 kW 16.2 hp |
|||
| Steering hydraulics | 13.2 L/min 3.5 gpm |
|||
| Implement hydraulics | 13.2 L/min 3.5 gpm |
|||
| Hitch type | Limited Category 1 | |||
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
|||
| Standard transmission; forward/reverse | Hydrostatic - two range | |||
| Cruise control | No | |||
| Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
|||
| Wheelbase | 1450 mm 57.1 in. |
| Manufacturer | Yanmar® | |||
|---|---|---|---|---|
| Engine model | 3TNM74F-NCJT | |||
| Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
|||
| Power take-off (PTO) power | 12.1 kW 16.2 hp |
|||
| Rated engine speed | 3200 rpm | |||
| Type | Diesel | |||
| Injection pump type | Indirect injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | Three cylinders: 0.993 L 60.6 cu in. |
|||
| Number of cylinders | Three | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke | 74 x 77 mm 2.91 x 3.03 in. |
|||
| Compression ratio | 23.5:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Water pump | |||
| Air cleaner | Dual element | |||
| Engine torque at rated speed | 47.7 Nm 35.2 lb-ft |
|||
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
